Homemade StackMat Tournament Display [Prototype]

timeless

Member
Joined
Mar 2, 2011
Messages
1,054
Location
CANADA
YouTube
pstimeless
how would you go about bypassing the speedstacks timer patents ? do you foresee any lawsuits in the near feature if this project is successful?


timeless

Member
Joined
Mar 2, 2011
Messages
1,054
Location
CANADA
YouTube
pstimeless
any blueprints available? this would make a good diy project for me, so i can learn from it as well since i am studying in a field related to this :)


CubeWizard23

Member
Joined
Jul 25, 2014
Messages
423
Location
I'd tell you, but then I'd have to kill you.
WCA
2015GAMB02
YouTube
CubeWizard23
Hey guys, just wanted to post an update about this project as we are getting very close to being able to release our first batch of product! Pictures will be coming shortly...
We will be setting up a paypal link on our webpage to purchase these shortly!
It is able to work with gen2 3 and pro timers (not tested with QJ or the other offbrand timers), it has a 1/4 - 20 nut in it enabling it to mount to standard tripods. It can be powered by a usb or 9 volt battery.

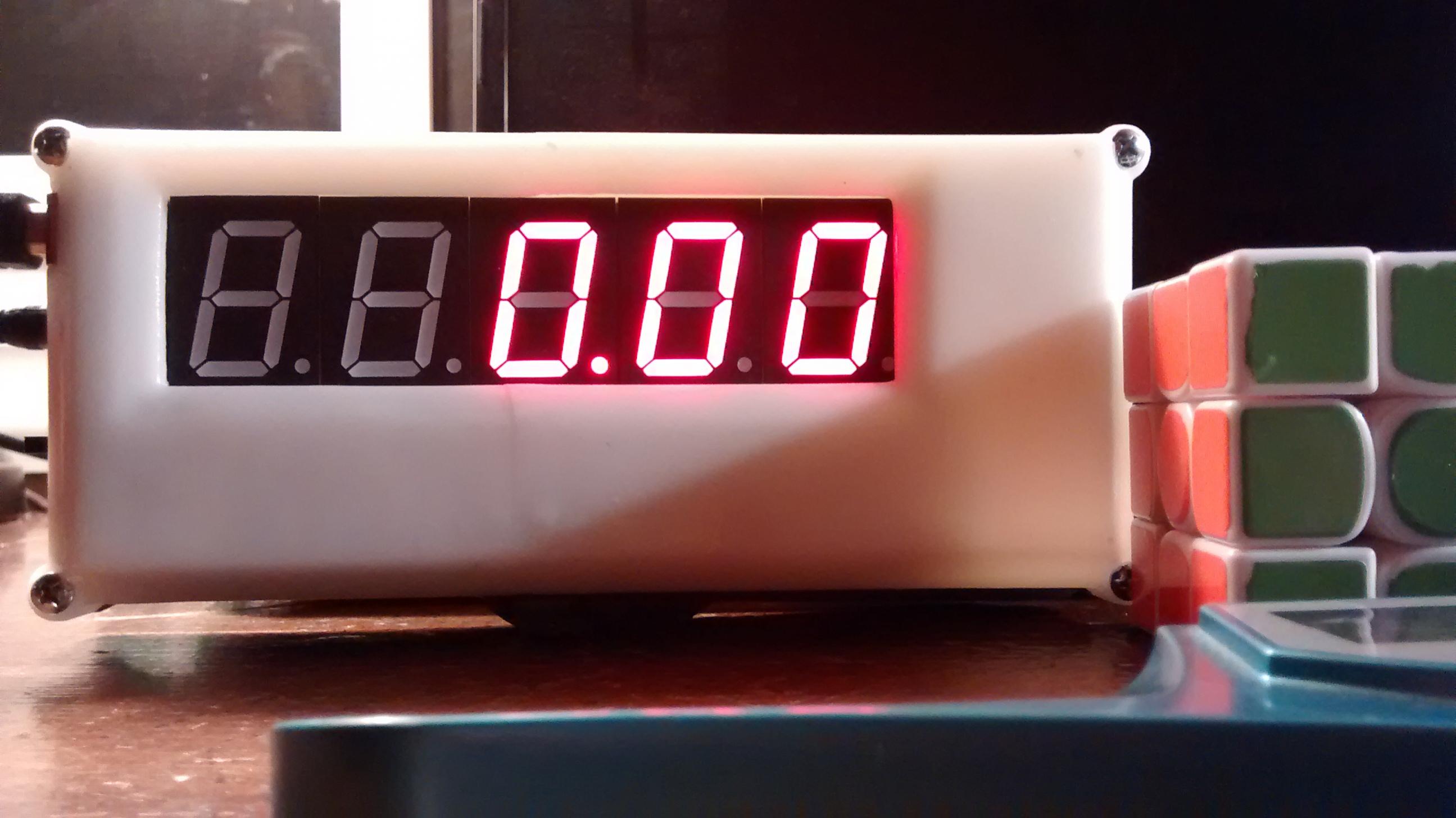

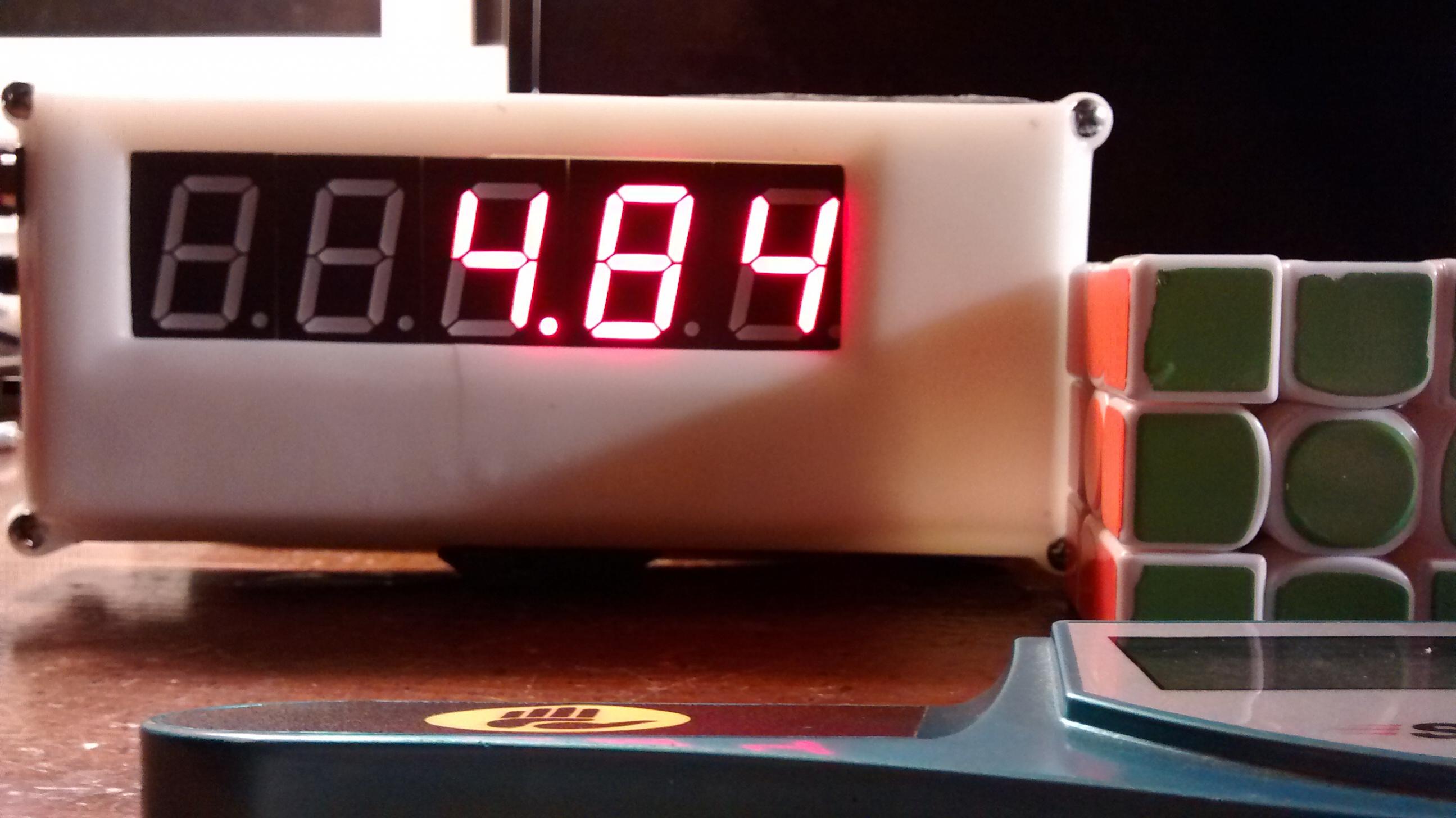

Each LED digit is a 1 inch LED, and displays 2 decimals of accuracy (even with timers that have 3, it truncates not rounds)
I'm excited to hear your feedback!

-CW23


biscuit

Member
Joined
Sep 8, 2014
Messages
1,814
Location
Kansas City
WCA
2015WEBS01
YouTube
channel/UCX5xp55Ms06qsUOckyrJSQA
Hey guys, just wanted to post an update about this project as we are getting very close to being able to release our first batch of product! Pictures will be coming shortly...
We will be setting up a paypal link on our webpage to purchase these shortly!
It is able to work with gen2 3 and pro timers (not tested with QJ or the other offbrand timers), it has a 1/4 - 20 nut in it enabling it to mount to standard tripods. It can be powered by a usb or 9 volt battery.
Each LED digit is a 1 inch LED, and displays 2 decimals of accuracy (even with timers that have 3, it truncates not rounds)
I'm excited to hear your feedback!

-CW23
Sweet! Now you have to make sure it works with gen 4 :D


YTCuber

Member
Joined
Jun 30, 2015
Messages
204

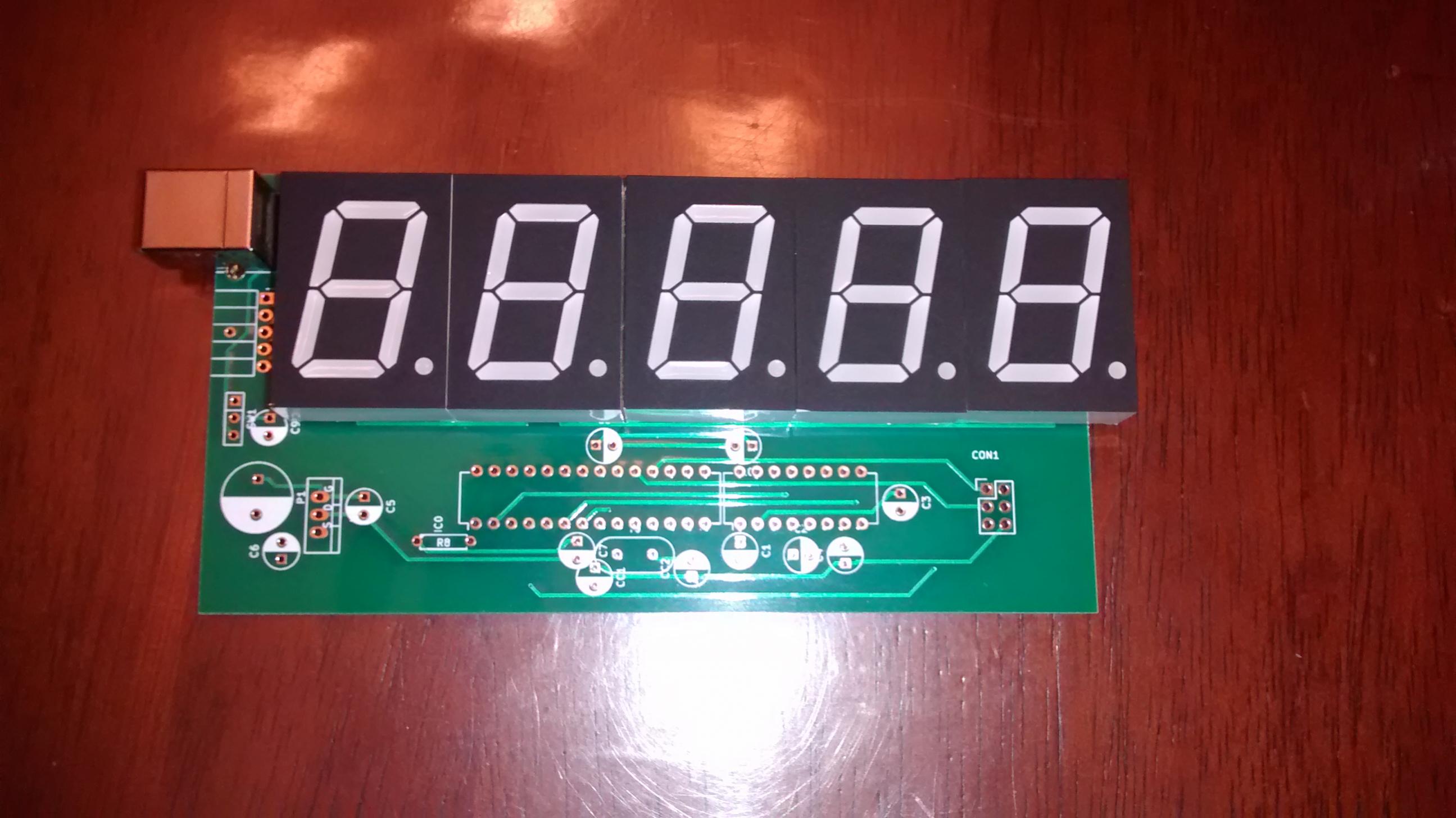

Where on the Picture in Post #27 are the current-limiting resistors?
I only see one resistor, a lot of Capacitors(C1...9), the ISP(CON1), the main µC(Atmega?), one mosfet (P1), the quartz(C7) with 22pF capacitors(CC1 and CC2) and the 5 7-Segment-Displays. The other IC is maybe a led driver (for segments), like the ULN2003.
But I can say more when I see the other side.
